Complete Guide to Tungsten Copper Alloy (W-Cu): Applications, Material Selection & Best Practices

Tungsten Copper (W-Cu) alloy is a high-performance pseudo-alloy composite made of insoluble tungsten (W) and copper (Cu) phases. Tungsten provides exceptional hardness, a high melting point, and superior arc-erosion resistance, while copper delivers outstanding electrical and thermal conductivity. By combining both, tungsten copper achieves complementary thermal, electrical, and mechanical properties.

For procurement engineers and manufacturers, choosing the right grade requires understanding not just basic material specs, but also real-world applications, operating conditions, and maintenance guidelines.

With nearly 30 years of deep expertise in tungsten-copper manufacturing, HAO CARBIDE provides a full spectrum of compositions ranging from WCu10 to WCu50. We specialize in precision custom-machined W-Cu components tailored to customer drawings, structural geometries, and specific service conditions.

1. Key Applications of Tungsten Copper Alloy (W-Cu)

1.1 Electrical Contacts in High-Voltage Switches & Circuit Breakers

In high-voltage switchgear, vacuum interrupters, and SF6 circuit breakers, electrical contacts serve as safety gates. Each make-and-break cycle triggers heavy electrical arcing, generating instantaneous extreme temperatures and mechanical shock. Conventional metals easily melt, erode, or weld shut under these harsh conditions.

Tungsten copper solves this through its unique structural synergy: the high-melting-point tungsten acts as a rigid, erosion-resistant skeleton, while the copper network acts as a built-in heat sink that rapidly dissipates thermal energy. For electrical contacts, higher-tungsten grades are typically chosen to balance arc-erosion resistance with reliable current carrying capacity.

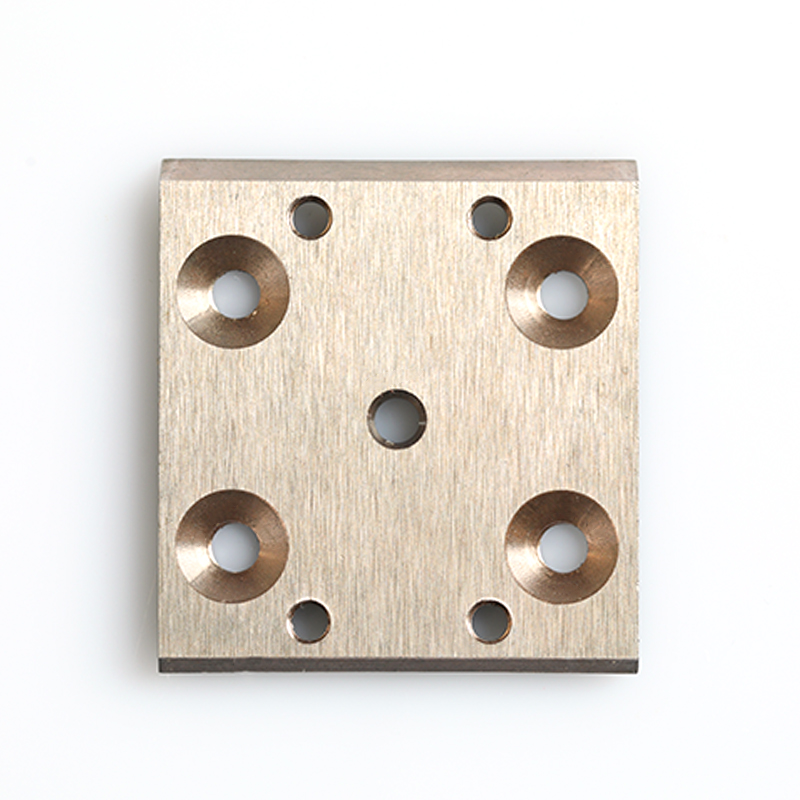

Applications of HAO CARBIDE Manufactured Tungsten Copper (W-Cu) Alloys

1.2 EDM (Electrical Discharge Machining) Electrodes

Electrical Discharge Machining relies on high-frequency spark erosion to remove metal, meaning EDM electrodes act like microscopic cutting chisels under intense thermal stress. Tungsten copper is the benchmark material for premium EDM and spark-erosion tools.

Unlike standard electrolytic copper or graphite electrodes, which suffer edge wear and rounding under high-frequency discharge, W-Cu offers exceptional corner and edge retention. Using W70Cu30 or W80Cu20 for precision EDM electrodes drastically cuts down redressing frequency and preserves tight dimensional tolerances—making them ideal for complex mold cavities, carbide tooling, and micro-machining.

Tungsten Copper electrode

1.3 Resistance Welding Electrodes

In spot welding, seam welding, and butt welding, electrodes must withstand cyclical high current, thermal surges, and continuous mechanical pressure. The electrode material must retain its geometric profile and hardness at elevated temperatures without softening.

Grades like W70Cu30 and W80Cu20 are standard for resistance welding. Higher copper content enhances conductivity and heat dissipation, whereas higher tungsten content resists mushrooming, deformation, and high-temperature softening. HAO CARBIDE tailors the exact W-Cu formulation and electrode dimensions based on welding currents, duty cycles, and workpiece materials.

1.4 Electrochemical Machining (ECM) Cathodes

Electrochemical machining dissolves metal through an electrolytic solution rather than mechanical shearing. The tool cathode operates submerged in corrosive electrolytes while conducting continuous current and enduring chemical corrosion. If the cathode erodes or deforms, workpiece tolerances fail.

Tungsten copper provides an inert, corrosion-resistant matrix combined with high electrical conductivity. Common grades like W70Cu30 and W75Cu25 feature slightly higher copper ratios to ensure stable current flow. Higher-tungsten grades can be specified if aggressive electrolytes or extended cycle times demand extra chemical resistance.

1.5 Vacuum Discharge Tubes & Spark Gaps

Electrodes in vacuum switching tubes, spark gaps, and trigger tubes must fire reliably in high-vacuum environments and survive rapid, transient thermal spikes.

W-Cu electrodes ensure low gas release, uniform electron emission, and high burn-off resistance. Grades such as W70Cu30 and W80Cu20 are typically recommended. HAO CARBIDE customizes electrode geometries and compositions to match the required discharge current, cycle life, and thermal dissipation needs.

1.6 Plasma Spray Nozzles and Cutting Electrodes

Plasma spraying and plasma arc cutting utilize extreme arc gas columns to melt and project materials at supersonic velocities. The nozzle and cathode sit directly at the arc orifice, bearing the brunt of intense thermal radiation and severe gas erosion.

Thanks to its balanced thermal shock resistance, tungsten copper is widely used for plasma torch nozzles and inserts. High-temperature, high-velocity plasma arcs call for high-tungsten formulations. HAO CARBIDE manufactures custom plasma cutting cathodes and spraying nozzles engineered to withstand severe thermal degradation.

1.7 Electronic Packaging, Heat Sinks & Thermal Management

As microelectronic and optoelectronic chips operate at higher power densities, effective heat dissipation becomes critical. Furthermore, mismatched Coefficients of Thermal Expansion (CTE) between the silicon/ceramic chip and its heat sink can induce destructive thermal stress during temperature cycles.

By adjusting the tungsten-to-copper ratio, the CTE of W-Cu can be precisely tailored to match semiconductor materials (such as Si, GaAs, and ceramic substrates like AlN and BeO). High-tungsten formulations such as W85Cu15 and W90Cu10 are standard choices for high-power semiconductor bases, RF packages, and laser diode submounts.

1.8 High-Temperature Hot Pressing Dies and Anvils

In hot pressing and thermal forging, dies and anvil blocks undergo continuous cyclical heating, compressive stress, and thermal fatigue. W80Cu20 and W85Cu15 are widely used for hot-pressing tooling: tungsten preserves high-temperature compressive yield strength, while copper evacuates heat quickly to minimize thermal cracking. HAO CARBIDE provides custom hot-press tooling, blocks, and inserts designed to prolong tool life in extreme forging environments.

2. How to Select the Right Tungsten-Copper (W-Cu) Grade: A 6-Step Guide

Selecting the optimal tungsten-copper grade depends on analyzing six key operating variables:

1. 1. Assess the Thermal Load: Does the part face continuous arcs, plasma erosion, or high ambient heat? High thermal shocks favor higher tungsten content (e.g., W80–W90) for maximum melting resistance.
2. 2. Determine Electrical Requirements: High operating currents and low allowable voltage drop require higher copper content (e.g., W70Cu30, W60Cu40) to minimize resistive Joule heating.
3. 3. Evaluate Mechanical Wear & Pressure: If the part undergoes mechanical impact, sliding friction, or requires anti-mushrooming properties, prioritize tungsten content to maintain hardness and yield strength.
4. 4. Match Thermal Expansion (CTE): When bonding to silicon chips, GaAs, or ceramics, choose grades like W80Cu10 or W90Cu10 to closely match CTE and eliminate interfacial stress.

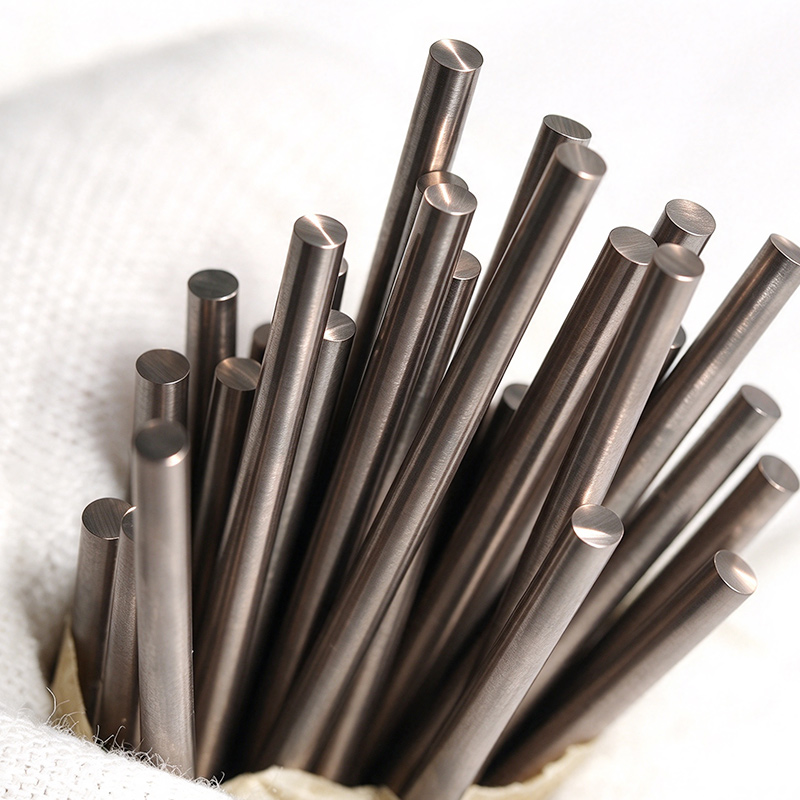

Tungsten Copper W75Cu25 rod

Consider Part Geometry and Machinability: High-tungsten alloys are harder and more brittle. Complex shapes or micro-hole geometries require specialized EDM and precision grinding capabilities. HAO CARBIDE provides end-to-end CNC machining according to tight customer tolerances.

Balance Performance, Cost, and Cycle Life: Validate the material choice via prototyping. HAO CARBIDE partners with clients on prototype development and field testing to ensure the most cost-effective balance between service life and raw material costs.

3. Important Guidelines for Machining and Handling Tungsten Copper

To maximize component performance and avoid premature failure, keep these handling practices in mind:

1. Machining: Due to tungsten's high hardness, conventional carbide tooling wears down quickly. Precision grinding, diamond tooling (PCD), and wire EDM are recommended for complex shapes and fine tolerances.
2. Joining and Welding: Direct fusion welding is not recommended due to the vast melting point difference between W and Cu, which can lead to porosity and thermal cracking. Use vacuum brazing, silver brazing, or mechanical threading/press-fitting.
3. Storage and Oxidation Protection: The copper phase can oxidize when exposed to high humidity or acidic environments. Store parts in dry, vacuum-sealed, or desiccant-packed packaging to prevent surface discoloration.
4. Thermal Limitations: Operating temperatures should remain below the melting and evaporation thresholds of the copper phase in open-air environments to avoid matrix degradation.
5. Mechanical Shock: While tougher than pure tungsten, W-Cu still exhibits limited ductility compared to plain copper. Avoid sharp edge impacts, unguided clamping, or extreme bending stresses.
