Electrical Conductivity of Tungsten Copper (W-Cu) Alloy: Properties, Factors, and Applications

Copper wires, busbars, and terminals are widely used for current transmission due to copper’s exceptional electrical conductivity. But what happens when a material combines both tungsten and copper?

Tungsten is not inherently known for high electrical conductivity; yet, tungsten copper (W-Cu) alloys are extensively used in electrodes, electrical contacts, and other heavy-duty components that require continuous current transmission. This seemingly contradictory phenomenon is the key to understanding the electrical properties of tungsten copper.

Simply put, tungsten copper is not engineered to match the conductivity of pure copper. Instead, it utilizes copper's conductivity as a foundation while incorporating tungsten's high melting point, superior hardness, and excellent thermal resistance. This unique composite structure allows the material to excel in demanding industrial environments where pure copper fails.

1. Why Can Tungsten Copper Alloy Conduct Electricity?

To understand the conductivity of tungsten copper, imagine the interior of the material as a dual-phase conductive network:

• The Copper Phase (The Conductor): Copper features exceptional free-electron mobility. When the copper phase forms a continuous distribution or network throughout the alloy, electrical current flows smoothly through these pathways.

• The Tungsten Phase (The Skeleton): While tungsten is not the primary conductive pathway, it forms a rigid structural framework (skeleton) or dispersed matrix. This gives the alloy outstanding mechanical strength, wear resistance, and thermal stability.

Consequently, the electrical conductivity of tungsten copper falls naturally between that of pure copper and pure tungsten. As a general rule:

• Higher Copper Content: Results in a denser conductive network and higher electrical conductivity.

• Higher Tungsten Content: Enhances arc and heat resistance, but causes conductivity to decrease.

Understanding Conductivity via % IACS

In engineering, electrical conductivity is standardly expressed as % IACS (International Annealed Copper Standard), where commercially pure annealed copper is rated at 100% IACS.

Based on laboratory testing and manufacturing data from HAO CARBIDE, typical tungsten copper materials demonstrate conductivity levels ranging between 30% and 60% IACS, depending directly on the composition ratio and density.

2. Key Factors Affecting the Conductivity of Tungsten Copper

According to practical manufacturing experience at HAO CARBIDE, raw material composition is only one part of the equation. Actual conductivity is determined by several critical factors summarized in the table below:

At HAO CARBIDE, advanced process control is implemented across every production phase to ensure exceptional batch-to-batch consistency in density, micro-uniformity, and electrical conductivity.

3. Industrial Applications Utilizing Tungsten Copper's Conductivity

Drawing upon extensive R&D and manufacturing capabilities, HAO CARBIDE supplies tungsten copper materials engineered specifically for applications demanding both reliable electrical transfer and extreme thermal/arc resistance.

3.1 Electrodes for High-Stress Environments

An electrode acts as the gateway for electric current to enter or exit a system. In high-energy manufacturing processes, electrodes must carry heavy currents while withstanding high heat and aggressive electrical discharge.

• EDM (Electrical Discharge Machining) Electrodes: EDM removes hard metals via continuous, high-frequency spark erosion. Tungsten copper electrodes deliver the required current while withstanding local thermal shock, offering a significantly lower wear rate and sharper corner retention than pure copper.

• Resistance Welding Electrodes: Resistance welding generates localized heat by running high currents through the workpiece under mechanical force. W-Cu electrodes provide the electrical conductivity needed for rapid heating while resisting deformation, softening, and sticking under repeated thermal-mechanical cycling.

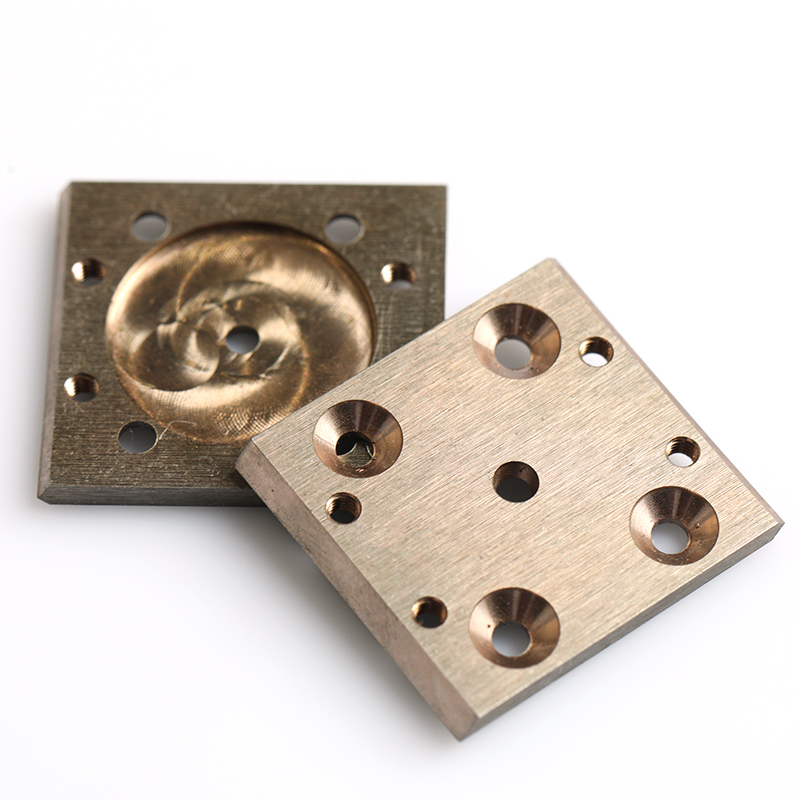

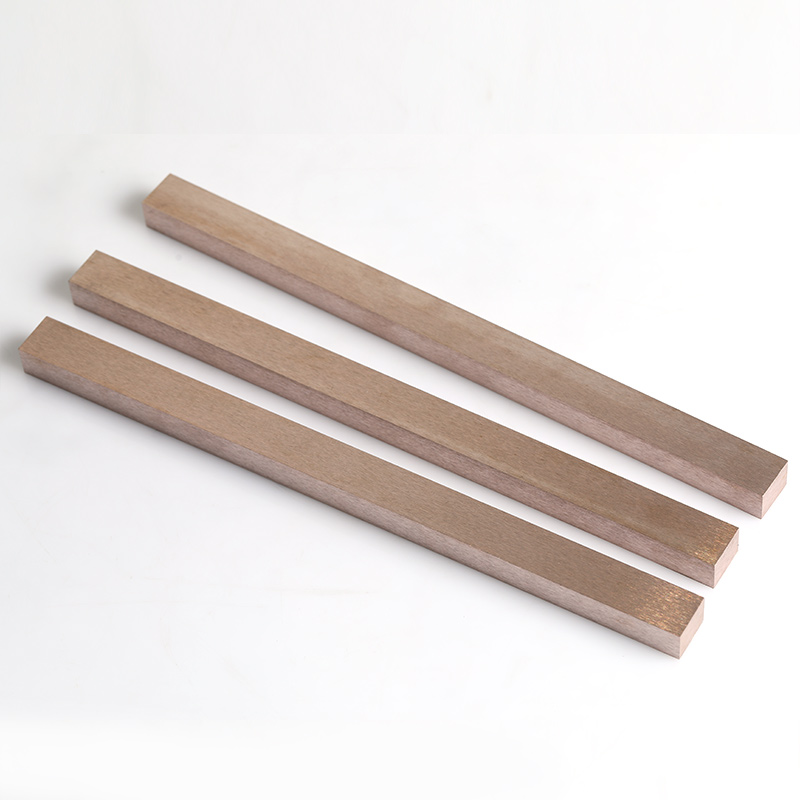

Capabilities Note: HAO CARBIDE manufactures custom tungsten copper electrodes in rods, blocks, plates, and fully machined custom components with drilled holes and complex slots.

3.2 Electrical Contacts and Arcing Tips

Electrical contacts serve as the vital connection points in circuits. Switches, contactors, and high-voltage circuit breakers must reliably conduct current from one contact point to another.

In high-voltage or heavy-current environments, opening and closing the circuit generates severe electric arcs, mechanical impact, and extreme heat. Pure copper contacts would quickly melt or weld shut under these conditions.

Tungsten copper combines copper’s low electrical contact resistance with tungsten’s high arc-erosion resistance and anti-welding properties, making it the premier choice for:

• High- and medium-voltage circuit breaker contacts

• Arcing tips and runners

• Heavy-duty relay contact surfaces

4. Summary: Choosing the Right Grade with HAO CARBIDE

Tungsten copper is an engineered composite designed to deliver the best of both worlds: electrical current delivery alongside high-temperature endurance.

Whether you need a high-copper grade (e.g., CuW70 / 70W-30Cu) for higher conductivity, or a high-tungsten grade (e.g., CuW80 / 80W-20Cu) for superior arc erosion resistance, HAO CARBIDE can tailor material compositions, densities, and finished component dimensions to your exact application requirements.

Contact the HAO CARBIDE engineering team today to consult on material specs, request conductivity data sheets, or receive a fast quote for custom tungsten copper components.
